Manual Reset Latching Solenoid

This solenoid utilizes zero power to hold position, releases quickly when activated, and remains in position until manually reset.

This manual reset latching solenoid is ideal for power interrupt switches and reclosers. It can remain in either of its two positions without a constant application of power. It has a high holding force, is temperature stable, and can release at -40°C in less than 12 ms. Its extremely robust design eliminates the durability failure modes of standard U-frame designs. The solenoid's size and configuration are customizable to fit a variety of application requirements.

Typical Applications

Features and Benefits

  • High holding force
  • Direct acting
  • Two-position latching
  • Fast response time
  • Robust and durable
  • Stable in a wide range of temperatures
  • Customizable size and configuration

All TLX components are customized to fit system requirements, meaning technical specifications are unique to each customer and design. Examples given on our website are for illustration purposes only.

Is our Manual Reset Latching Solenoid the right fit for your application?

TLX Technologies partners with the world’s top brands, first-tier suppliers, and OEMs. Contact our engineers today to discuss the details of your project.

Latching Technology Used to Isolate Power Faults

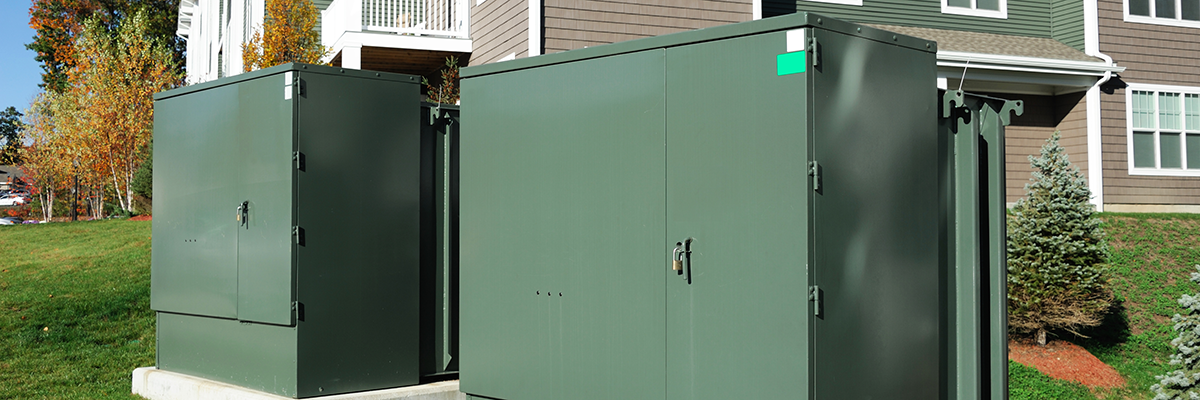

A robust latching solenoid was designed with a manual reset feature for a manufacturer of medium voltage power distribution equipment who needed a solution for actuating the fault interrupter in a padmount switchgear.

Our engineers begin by designing with 3D CAD and performing electromagnetic and fluid dynamic analysis with state-of-the-art finite element analysis software. Every design is engineered and tested in our lab to meet our customers’ specifications.

Increased Performance

Precise control with high accuracy through tighter tolerances. Reducing friction and inefficiencies provides extremely low hysteresis.

Lighter Weight

Multiple variables in the design and manufacturing process are optimized to reduce overall weight and size of the solenoid or valve.

Minimized Footprint

Custom solenoids can be designed to utilize the best control scheme for your application, resulting in a minimized footprint.

Limited Power Consumption

Latching technology in solenoid and valve design minimizes overall power consumption.

Extreme Environments

Can be designed to meet extreme environments that include moisture, dirt/dust, vibration and/or extreme temperature requirements.

Built-in Safety

Failsafe modes are designed into solenoids and valves utilizing integrated electronic controls.
