Rapid Lithium-Ion Battery Fire Suppression
Our onboard fire suppression systems are engineered specifically for lithium-ion battery applications. Our systems can detect thermal runaway and suppress a fire in seconds.

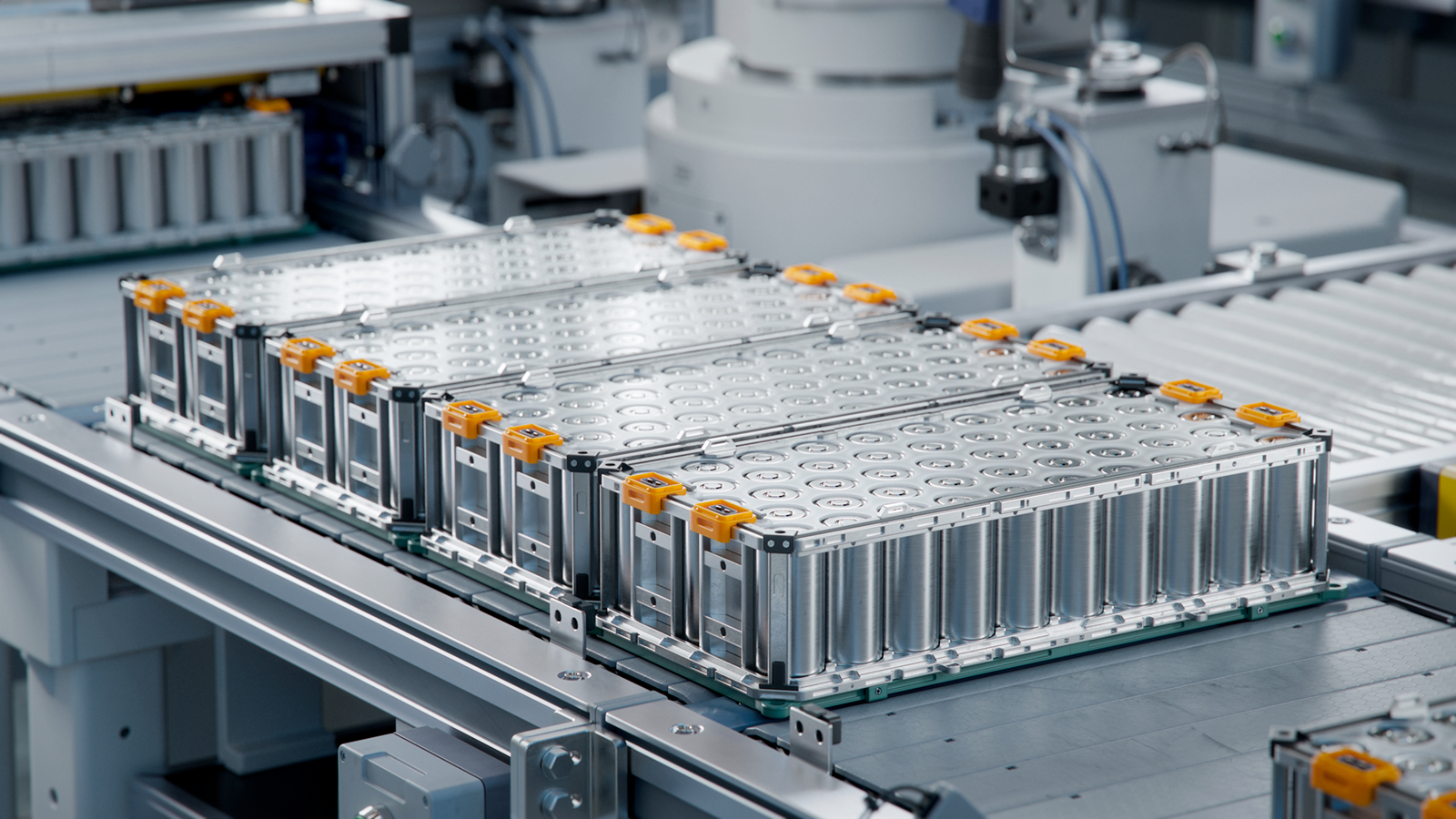

Lithium-Ion Battery Packs
Lithium-ion batteries fires are different than everything else
Most fires rely on external oxygen to burn. Lithium-ion battery fires are different. A battery in thermal runaway produces its own oxygen. Extinguishing agents or techniques that smother the fire are not viable and can create an explosion hazard by trapping flammable gases. The battery case also acts like a shield that prevents externally applied extinguishing agents from reaching the source of the fire.
Lithium-ion batteries in thermal runaway can exceed temperatures of 600°C and can re-ignite hours or weeks after the initial event and suppression. Applications relying on conventional fire protection are not adequately protected.
Trying to extinguish a lithium-ion battery fire after it has fully developed only leads to the total loss of battery-powered vehicles or equipment and risks extended property damage and loss of life. The only effective answer is an onboard fire suppression system equipped with continuous thermal runaway monitoring.
Onboard purpose-built suppression
We design and produce custom onboard lithium-ion battery fire suppression systems that deliver the extinguishing agent directly to the failed cells inside the battery enclosure. A sensor package automatically detects thermal runaway to rapidly discharge a specialized extinguishing agent to the source of the fire, extinguishing it in seconds.
Early thermal runaway detection
Sensors monitor parameters such as battery cell temperature, battery enclosure pressure, and gases produced during battery failure (CO, CO2, H2) to detect thermal runaway before a fire breaks out.
Targeted discharge
A suppression agent designed specifically for lithium-ion battery fires is routed through a simple, compact system of tubing and valves via nozzle manifolds into the battery enclosure. The specific agent is chosen based on application, battery chemistry, and enclosure design.
Automatic & manual activation
System activation is fully automatic. Support for a manual operator override is available based on application requirements.
Designed for certification
Systems are engineered to support UL, CE, and NFPA compliance. We work in collaboration with OEMs and system design teams to provide support towards system certification as required.
Specialized extinguishing agents
Our non-toxic, PFAS-free extinguishing agents use ingredients listed on the EPA’s Safer Chemical Ingredients List (SCIL) and are designed to extinguish lithium-ion battery fires in seconds.
< 30s
Average detection-to-suppression response time
24/7
Continuous monitoring for thermal runaway events. No human intervention required.
IP67
Sealed systems for demanding outdoor environments
Any battery-powered application in any environment
Our suppression systems are compact and designed for the realities of industrial, commercial, and consumer applications.
Applications include:
- On- and Off-Highway Vehicles
- E-Bikes & E-Scooters
- Lawn Equipment
- Forklifts & Pallet Jacks
- Golf Carts & Utility Vehicles
- Battery-Powered Wheelchairs
- Last Mile Mobility
- AGVs & Mobile Robots
- Home Energy Storage Systems
- Marine Applications
From the initial conversation to production
We treat every project as a collaboration. Our engineering team works alongside yours to ensure the suppression system fits your battery pack, your enclosure, and your operating environment.
Application Assessment
In collaboration with your team, we review your battery pack configuration, enclosure design, and operating environment to specify the right detection and suppression approach for your application.
System Design & Engineering
Our engineers will develop a system layout, including sensor placement, agent routing, valve and nozzle locations and requirements, control logic, and integration with your application’s electrical architecture.
Prototype & Validation
We build and test a working prototype against your physical unit, verifying detection response times, agent coverage, and activation under real operating conditions.
Production & OEM Support
We supply production-ready system kits for OEM line integration with ongoing technical support to your team.
Let’s build a system for your application
Whether you’re an OEM designing protection for your application or a battery enclosure manufacturer building for multiple applications, we’ll design the right solution for your system.
