Proportional Pneumatic Control Valve

Pulse width modulated flow control configured for specific pressure/vacuum ranges.

This pneumatic control valve was designed to precisely meter inlet and outlet pressure to proportionally control an actuator. The fully encapsulated design featured ultrafast response and was customized to the customer’s electronic drivers.

Typical Applications

Proportional Pneumatic Control Valve

Features and Benefits

  • Pulse width modulated proportional flow control
  • Compact fully encapsulated design
  • Can be configured for specific pressure/vacuum ranges for precise controllability
  • Can be optimized to customer's electronic drivers
Downloads

All TLX components are customized to fit system requirements, meaning technical specifications are unique to each customer and design. Examples given on our website are for illustration purposes only.

Is our Proportional Pneumatic Control Valve the right fit for your application?

TLX Technologies partners with the world’s top brands, first-tier suppliers, and OEMs. Contact our engineers today to discuss the details of your project.

Precisely Metering Inlet and Outlet Pressure

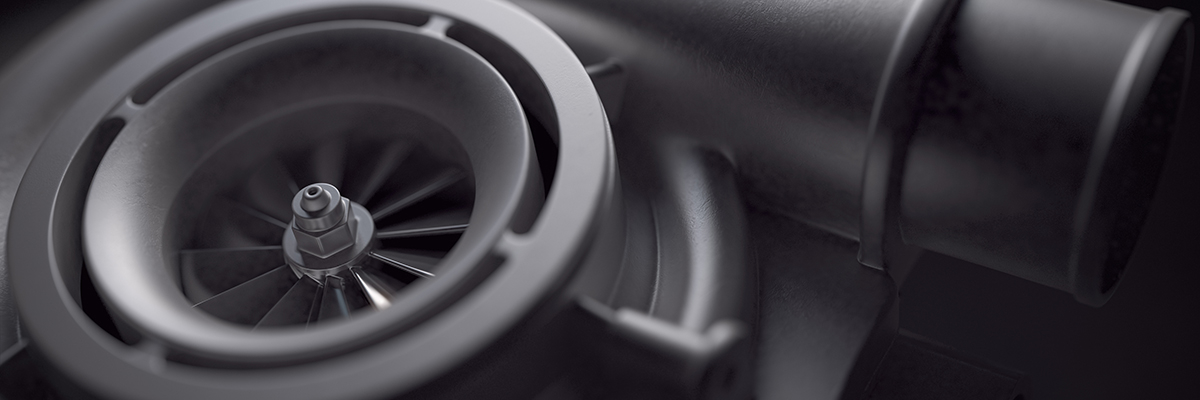

This proportional pneumatic control valve provided precise turbocharger wastegate control with reduced hysteresis and turbo lag.

TLX Technologies is the go-to partner of the world’s top automotive brands, first-tier suppliers, and OEMs for the design and development of tomorrow's most innovative automotive systems.

Complex Environments

Design and optimization of solenoids and valves for system applications that require high pressure, high speed, or extreme temperature specifications.

Better Performance

Precise control with high accuracy through tighter tolerances. Reducing friction and inefficiencies provides extremely low hysteresis.

Advanced Development

Advances in e-mobility and autonomous vehicle architectures provide opportunities to achieve intelligent and innovative solutions.

Reduced Power Consumption

Latching technology in solenoid and valve design minimizes overall power consumption.

Built-in Safety

Failsafe modes are designed into solenoids and valves utilizing integrated electronic controls.

Lighter Weight

Multiple variables in the design and manufacturing process are optimized to reduce overall weight and size of the solenoid or valve.
