Proportional Flow Control Using Discrete Valve Positions

A valve with low power consumption for applications that need higher flow rates.

Customer Problem

Many liquid-cooling thermal systems have to manage heat from multiple sources simultaneously, which often have differing heating and cooling requirements. These systems usually rely on electrically actuated proportional valves to control the flow of coolant. OEMs and system suppliers are discovering that many proportional flow control valves lack the ideal combination of attributes for their unique applications, including high flow rates in a small package size with minimal power consumption.

The TLX Solution

TLX developed the High-Flow Discrete Proportional Valve (HDPV). This two-way pilot valve delivers proportional flow control with up to four predefined, discrete positions and draws no current to maintain state. The piloted design allows small actuators to control large orifice areas. This results in a relatively small package size that can regulate high flow rates at pressures up to 60 psi while consuming less energy than many competing designs.

View Design Solution

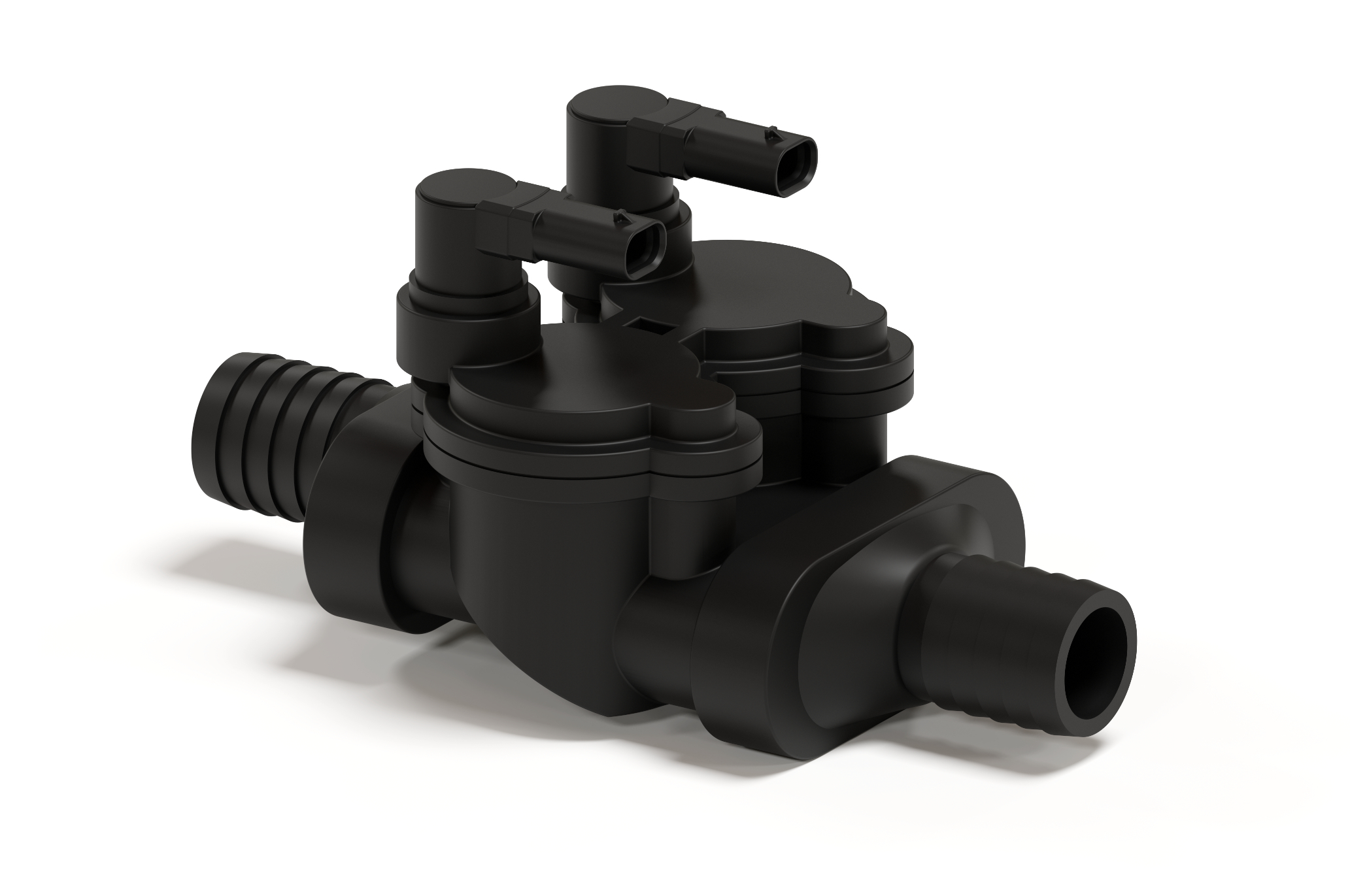

High-Flow Discrete Proportional Valve

Voltage: 12 or 24 Vdc

Cv values: 0 to 18 (higher values configurable)

Flow options: Full shutoff or bypass

Pressure rating: 414 kPa (60 psi)

Power draw to change flow rate: 200 ms @ 2 A pulse

All TLX components are customized to fit system requirements, meaning technical specifications are unique to each customer and design. Examples given on our website are for illustration purposes only.

Working with TLX

Experienced partner of industry leaders, first-tier suppliers, and OEMs
Direct access to our design and engineering team
Localized production in USA and China
Dependable single-source solution from design to delivery

Have questions or ready to get started?

Contact Our Engineers

Our Process

Step 1 / Initial Review

Our engineering team works directly with you to determine the viability of your program and identify the best solution based on your specifications.

Step 2 / Quote

Quotes include all costs related to your project - tooling, prototype, piece part, production and project specific costs.

Step 3 / Design Review & Prototypes

Our engineering team reviews the design with you and makes any adjustments needed. Prototypes are built according to design specifications for testing.
