Heavy Duty Latching Solenoid
This solenoid example utilizes a 100 ms pulse to latch and hold in position using a permanent magnet.
This solenoid was latched with a 100ms pulse and held in position with a permanent magnet (so that no power was consumed). A 100 ms pulse of opposite polarity de-latched the solenoid and returned the spring to the armature.
Typical Applications
Features and Benefits
- Fast response
- High latching force
- High clamping force
- Low power consumption
- Can be designed for specific load holding capability
- Can be designed to configure with customer power requirements
- Downloads
All TLX components are customized to fit system requirements, meaning technical specifications are unique to each customer and design. Examples given on our website are for illustration purposes only.
Is our Heavy Duty Latching Solenoid the right fit for your application?
TLX Technologies partners with the world’s top brands, first-tier suppliers, and OEMs. Contact our engineers today to discuss the details of your project.
Improving Welding Clamps with Latching Technology

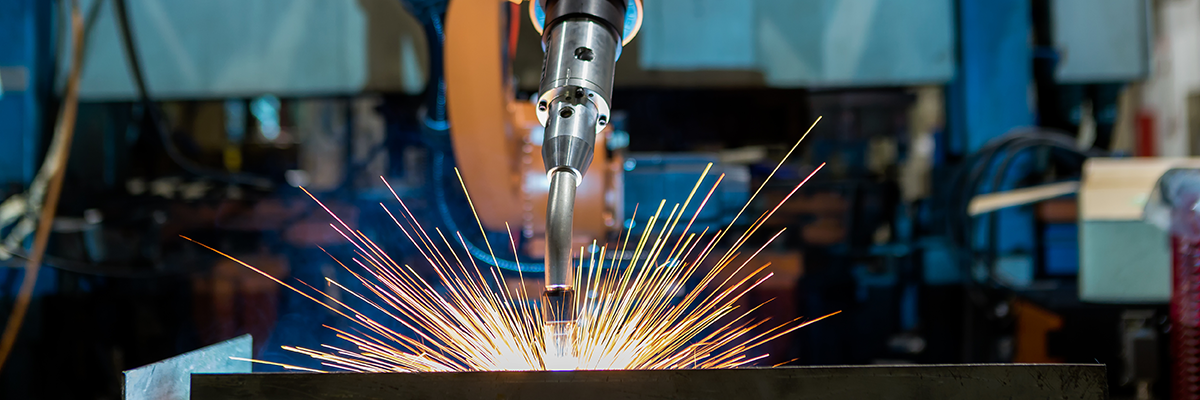

A manufacturer needed to replace the pneumatically powered clamps that held material for welding. A custom latching solenoid provided both the locking and latching functions the manufacturer required. Permanent magnets latched the solenoids in a retracted position without consuming power.
Our engineers begin by designing with 3D CAD and performing electromagnetic and fluid dynamic analysis with state-of-the-art finite element analysis software. Every design is engineered and tested in our lab to meet our customers’ specifications.
Increased Performance
Precise control with high accuracy through tighter tolerances. Reducing friction and inefficiencies provides extremely low hysteresis.
Lighter Weight
Multiple variables in the design and manufacturing process are optimized to reduce overall weight and size of the solenoid or valve.
Minimized Footprint
Custom solenoids can be designed to utilize the best control scheme for your application, resulting in a minimized footprint.
Limited Power Consumption
Latching technology in solenoid and valve design minimizes overall power consumption.
Extreme Environments
Can be designed to meet extreme environments that include moisture, dirt/dust, vibration and/or extreme temperature requirements.
Built-in Safety
Failsafe modes are designed into solenoids and valves utilizing integrated electronic controls.
